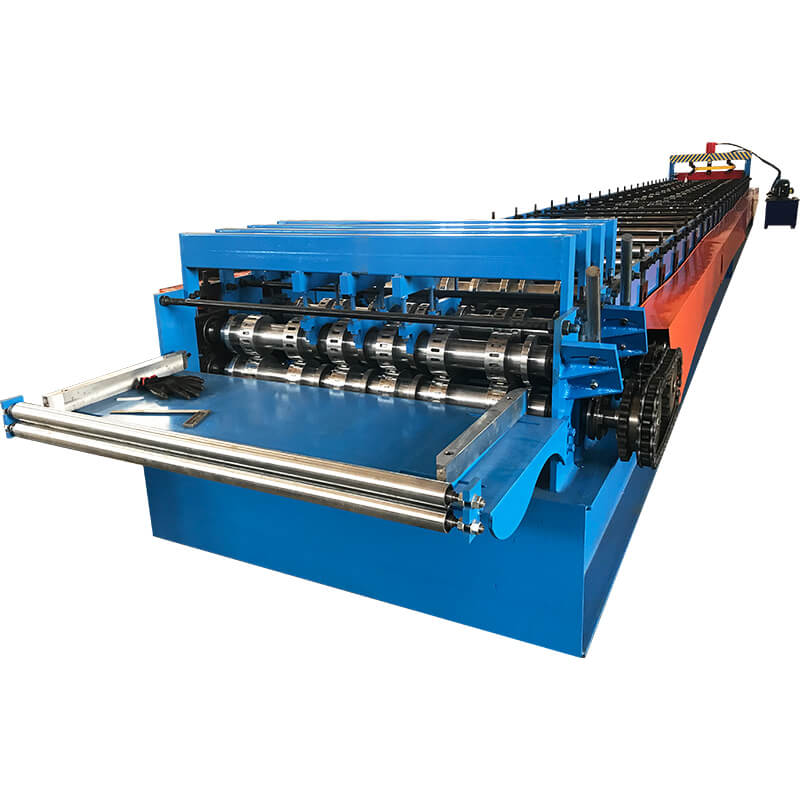

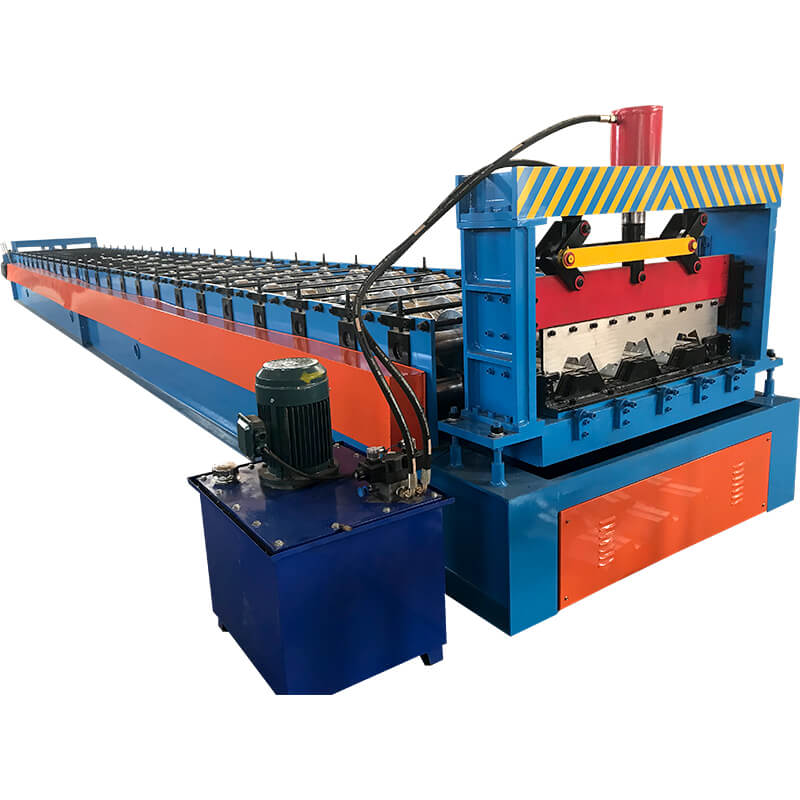

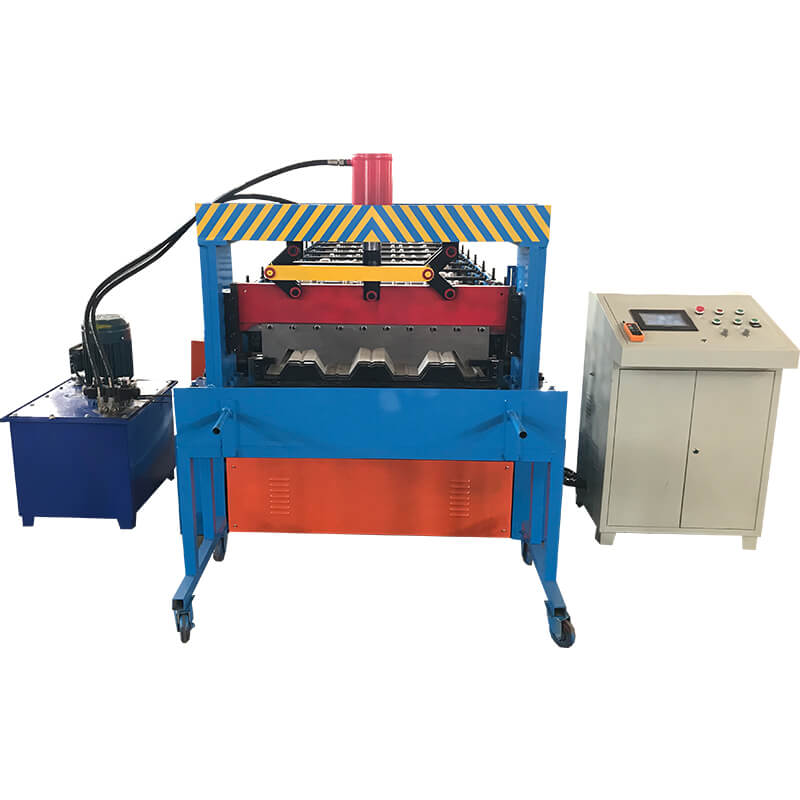

steel floor deck roll forming machine
This steel floor deck roll forming machine can produce 914mm floor deck sheet.
Power(W): 15Kw+15Kw+4Kw
Warrancy: 2 years for machinery warrancy
Port: Tianjin Port, Qing dao port, Shanghai port, Yiwu port
Lead Time:
|
Quantity(Sets) |
1 - 3 |
4 - 5 |
6 - 10 |
>10 |
|
Est. Time(days) |
25 |
30 |
40 |
Negotiable |
Our steel floor deck roll forming machine can provide different models according to different designs or customer samples.
914mm steel floor deck roll forming machine main Parameters
|
1 |
Suitable to process |
Alu-zinc steel coil/Galvanized steel coil |
|
2 |
Roller |
26rollers or according to final design |
|
3 |
Dimensions |
12.5*1.8*2.0m |
|
4 |
Motor Power |
15Kw*2 |
|
5 |
Pump Station Motor |
4Kw.Lichao Brand |
|
6 |
Thickness of the plate |
0.5-1.2mm |
|
7 |
Productivity |
10-15m/min |
|
8 |
Material of the cutting blade |
Cr12,Quenched treatment 58℃-60℃ |
|
9 |
Diameter of the roller |
Φ90mm |
|
10 |
Weight |
About 16500kgs |
|
11 |
Main structure of the machine |
450 H Beams |
|
12 |
Processing precision |
Within 1.0mm |
|
13 |
Side panel of machine |
20 mm |
|
14 |
Chain Wheel and Cycle Chain |
2 Inch |
|
15 |
Voltage |
380V 50Hz 3phases or as customer's need |
|
16 |
Control system |
PLC control (Delta) |
|
17 |
Frequency system |
Delta |
|
18 |
Drive mode |
Gear driver |
|
19 |
Touch screen |
Delta |
|
20 |
Rolling materials |
45# forging steel with chromium plate |
|
21 |
Length Tolerance |
±2mm |

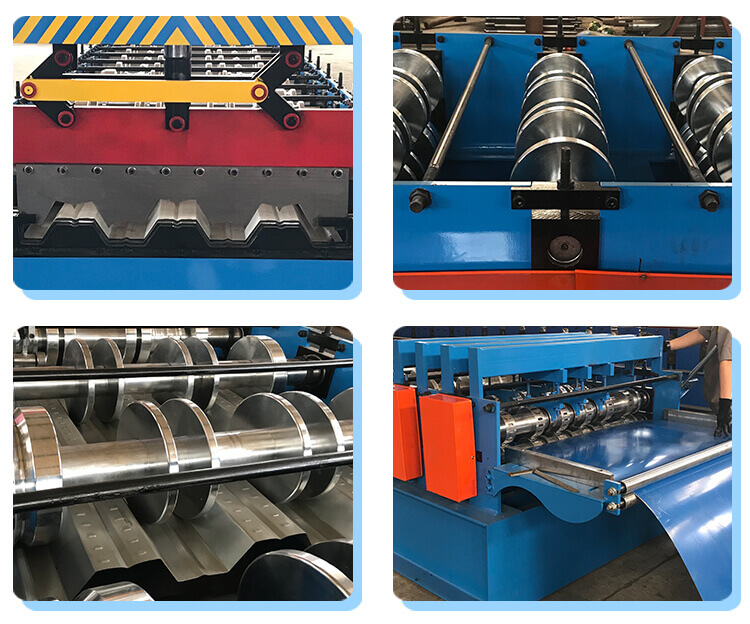

Machine details
Packaging & Delivery
a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
b.Rollers and shafts are covered with anti-rust oil.
c.PLC control system and motor pump are packed with waterproof paper and plastic film.
d.Spare parts in a carton box.
e.Manual decoiler was nude packing.
f.The output-table put into a carton box.
g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
h.Fit for ocean shipping.
