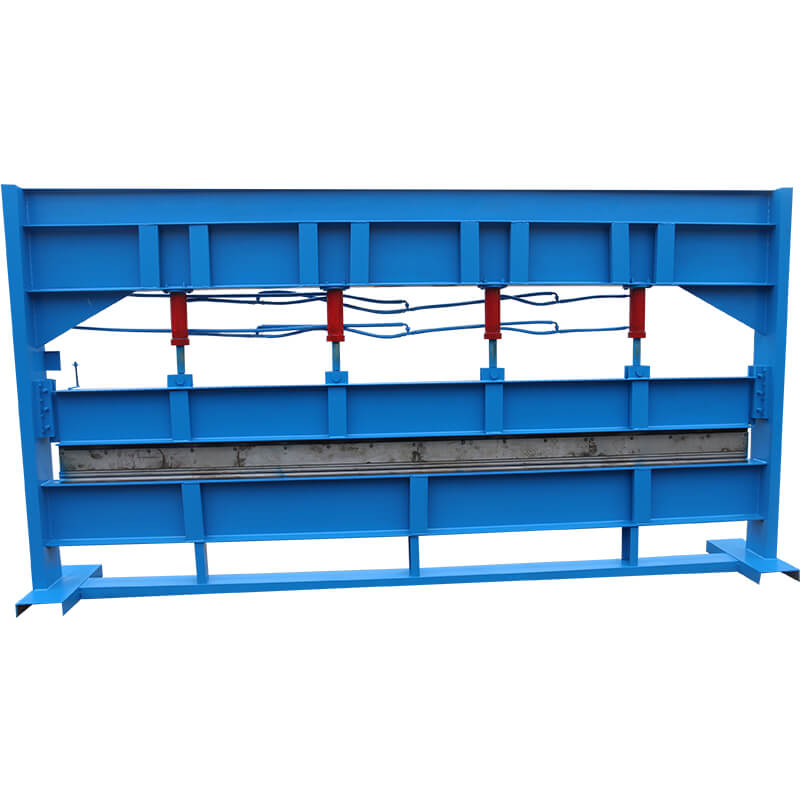

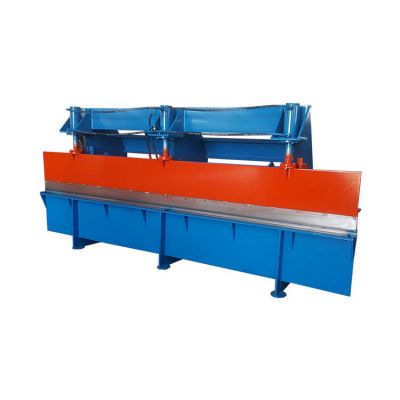

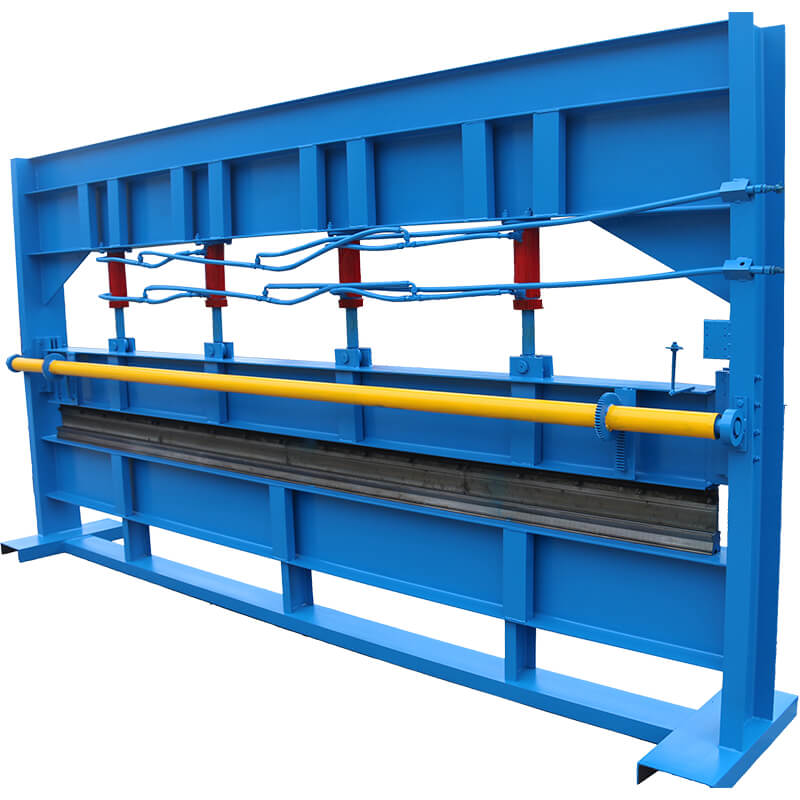

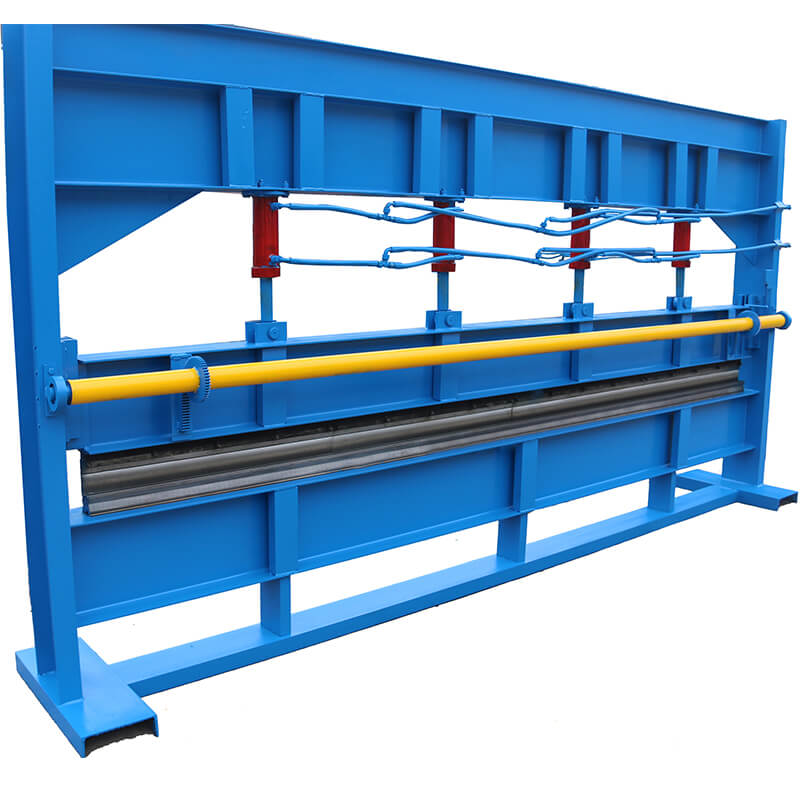

metal sheet bending machine
Basic data for bending machine
| Thickness of plate can be bended | 0-1.0mm |
| Length of plate can be bended | 4M to 6M |
| Double cylinder hydraulic drive | stroke is 150mm |
| Oil pump | gear oil pump , pressure is 25mp |
| Power of motor | 3kw |
| weight | about 1.8tons |
| machine length | customized |
metal sheet bending machine main parameters
(1) Suitable material: aluzinc/galvanized steel/colored coil
(2)Thickness of the plate: 0.3-1.0mm
(3) Width of input plate: 4m/6m
(4) Power of electric motor: 3 kw
(5) Hydraulic motor: 3kw
(6) Appearance size: 4600/6600*1300*1500mm
(7) total weight: 1.1 ton/2.0 ton
(8)Guide pillar: 4(down force 15T)
(9)Tool angle: 7 point 45-135°
(10)Mold materials: Cr12
Packaging & Delivery
a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
b.Rollers and shafts are covered with anti-rust oil.
c.PLC control system and motor pump are packed with waterproof paper and plastic film.
d.Spare parts in a carton box.
e.Manual decoiler was nude packing.
f.The output-table put into a carton box.
g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
h.Fit for ocean shipping.
