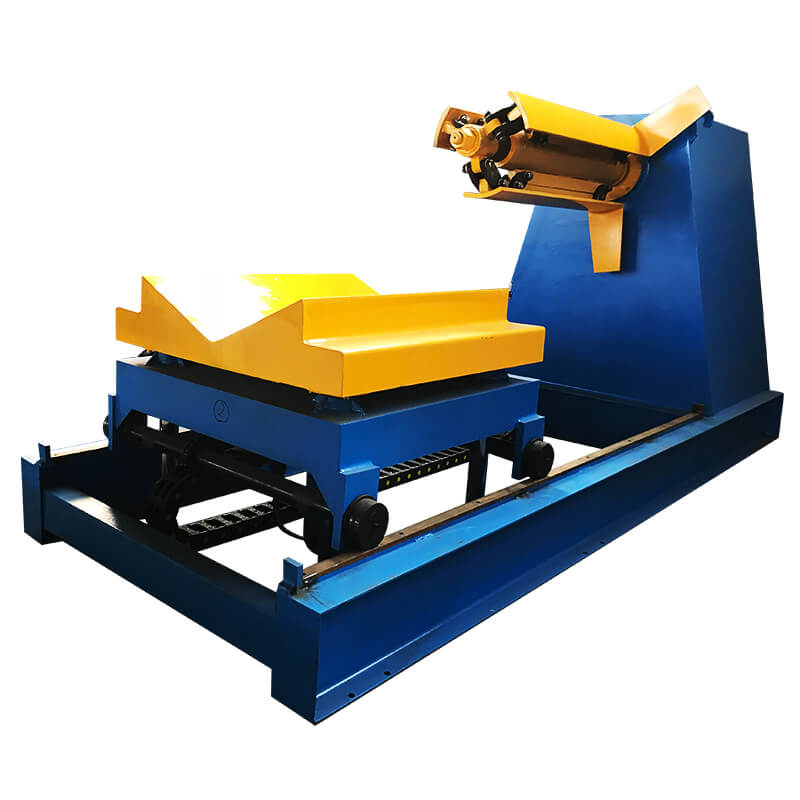

hydraulic decoiler machine
Tightening principle:
It consists of three support arms with a length of 1250mm and a thickness of 25mm. The support cylinder pulls the cast iron connecting rod to tighten, and in the front add the support arm.
Tightening principle:
It consists of three support arms with a length of 1250mm and a thickness of 25mm. The support cylinder pulls the cast iron connecting rod to tighten, and in the front add the support arm.
hydraulic decoiler machine main Parameters
|
1 |
Size |
2.8*1.7*2.0meters |
|
2 |
Weight |
3.5Tons (Include loading trolley) |
|
3 |
Main axis |
200mm |
|
4 |
Motor Power |
4Kw |
|
5 |
Pump Station Motor |
4Kw ,Brand Lichao,Shanghai |
|
6 |
Frequency Inverter |
5.5Kw |
|
7 |
Cylinder type |
125 Rotating cylinder |
|
8 |
Bottom shelf |
350 H Beams |
|
9 |
The whole box iron plate |
14mm |
|
10 |
Max put weight |
7Tons |
|
11 |
Max coil width |
1250mm(or according to your need) |
|
12 |
Coil diameter |
470-530mm or customer's need |
|
13 |
Control Box |
Delta ,Taiwan |
|
14 |
Power |
380V 50HZ 3Phase or customer's need |
