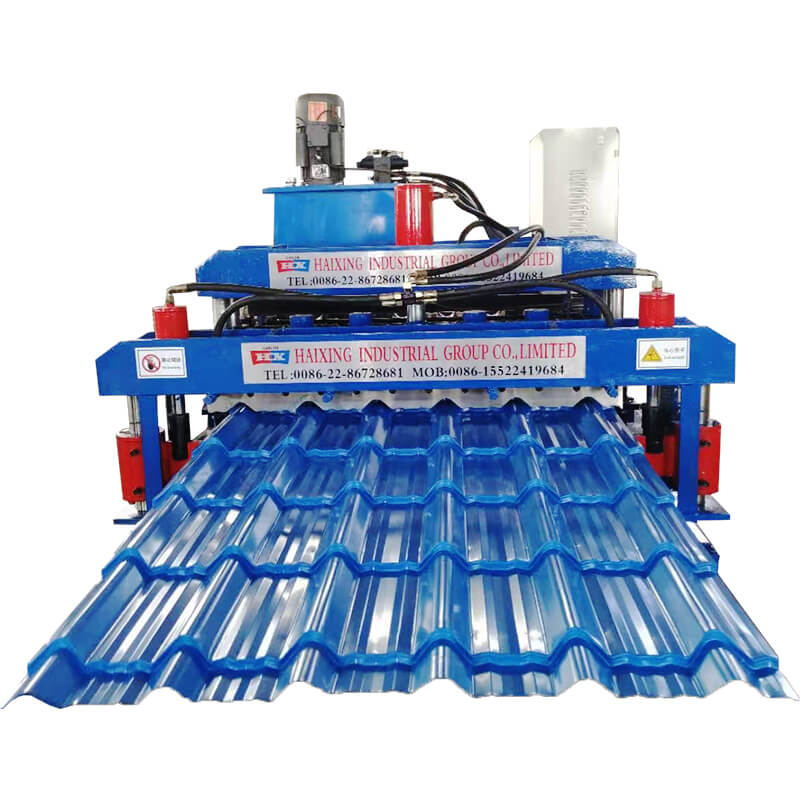

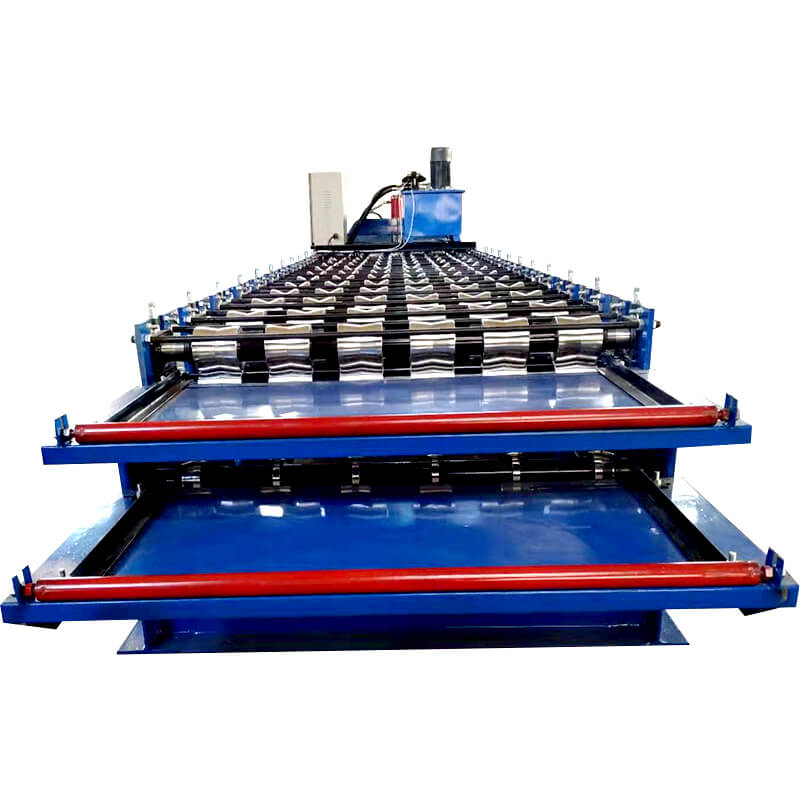

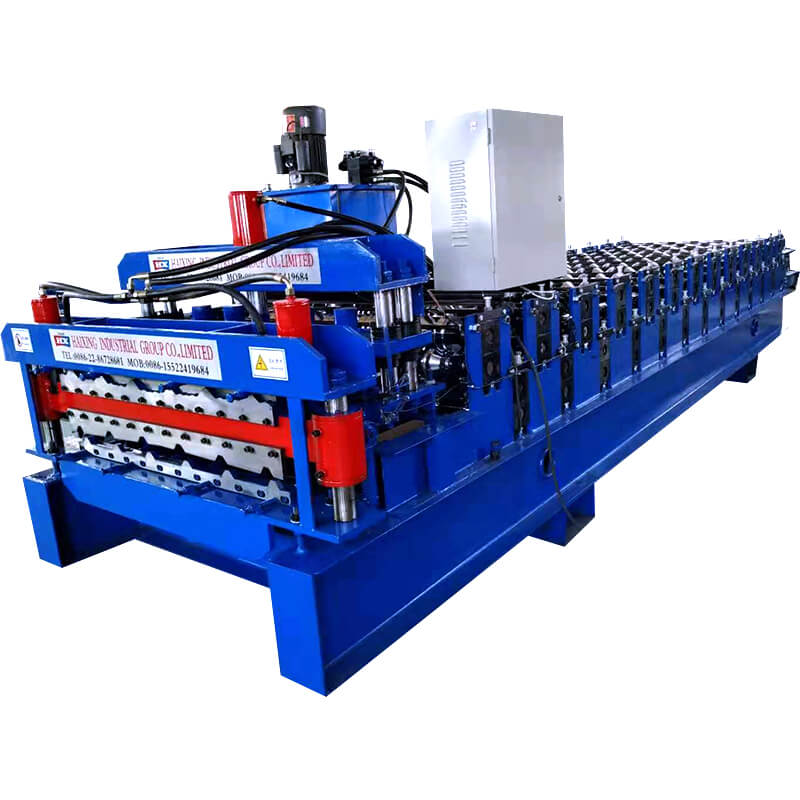

double layer metal roofing machine
double layer metal roofing machine double layer metal roofing machine double layer metal roofing machine

double layer metal roofing machine

Product ID : 960mm glazed + 1015mm trapezoidal tile
Product Tags :
Product Attributes :

This double layer roof roll forming machine can produce the steel tile as follows: 960mm glazed roof sheet and 1015mm trapezoidal roof sheet.

Product Description

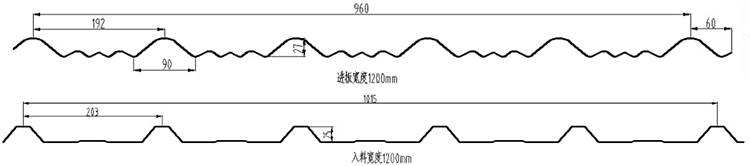

960mm glazed + 1015mm trapezoidal roof tile profile

960 glazed + 1015 trapezoidal roof tile profile

Raw material: Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Aluminum steel coil/ Stainless steel coil

Feeding thickness: 0.3-1.0mm(Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Stainless steel coil); 0.3-1.5mm (Aluminum steel coil)

960mm glazed + 1015mm trapezoidal double layer metal roofing machine main Parameters

Main motor power

5.5KW

Voltage

380V/50HZ/3 phase, or as requirement

Productivity

Up: 1.5-3m/min

Down: 8-12m/min

Mainframe

350mm H beams, 45# steel

Middle plate

18mm

Wheel

45# steel, hardness HRC 58-60℃

Shaft

high quality 45# forged steel, with anti-return pad

Shearing knife

Cr12 / Cr12MOV, heat treatment, HRC 58-60℃

Decoiler

Manual decoiler for free

Cutting blade

Manual cutter

Cutting method

Hydraulic guide column cutting

Control System

PLC Control System, 360 degree rotation

PLC Display languages

Chinese, English, (Spanish or Russian)

Machine details

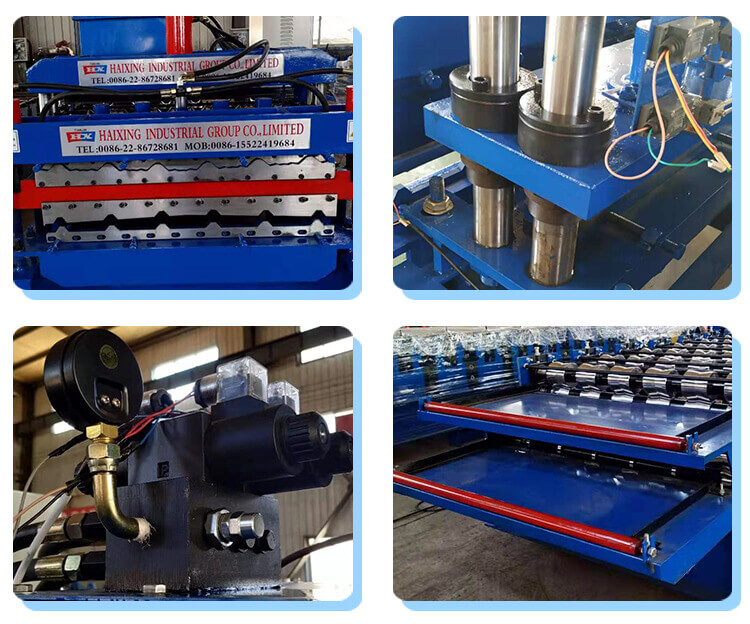

960 glazed + 1015 trapezoidal double layer roof machine details

Additional Information

Supply Ability:

200 Sets per Month

Packaging & Delivery:

a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.

b.Rollers and shafts are covered with anti-rust oil.

c.PLC control system and motor pump are packed with waterproof paper and plastic film.

d.Spare parts in a carton box.

e.Manual decoiler was nude packing.

f.The output-table put into a carton box.

g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.

h.Fit for ocean shipping.

Port:

Tianjin Port, Qing dao port, Shanghai port, Yiwu port

Lead Time :

Quantity(Sets)

1 - 3

4 - 5

6 - 10

>10

Est. Time(days)

25

30

40

To be negotiated
