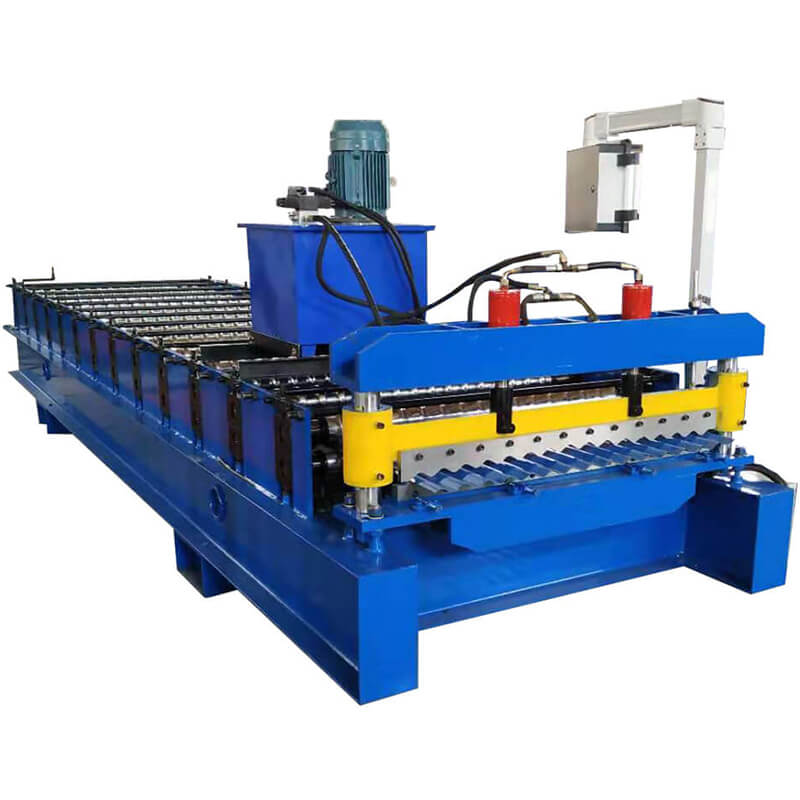

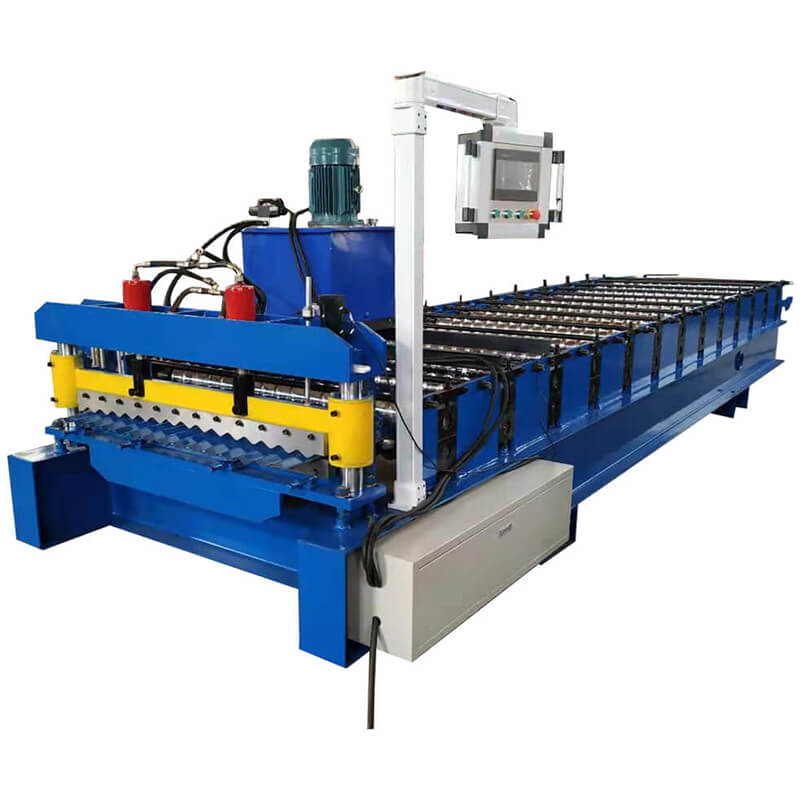

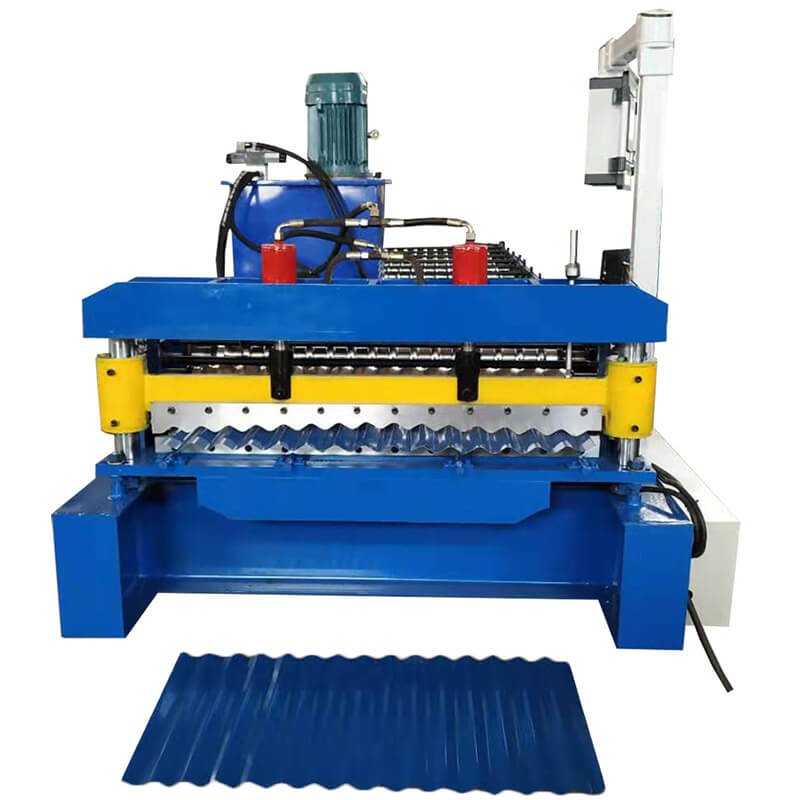

corrugated galvanized roof roll forming machine
corrugated galvanized roof roll forming machine corrugated galvanized roof roll forming machine corrugated galvanized roof roll forming machine

corrugated galvanized roof roll forming machine

Product ID : 1050/825mm corrugated tile
Product Tags :
Product Attributes :

This metal roof forming machine can produce 1050mm and 825mm corrugated roof tiles in one machine.

Product Description

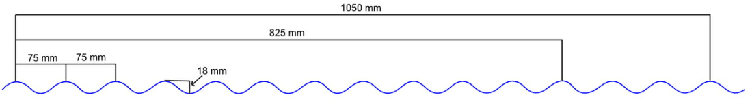

1050-825 corrugated galvanized roof tile profile

1050-825 corrugated roof tile profile

Raw material: Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Aluminum steel coil/ Stainless steel coil

Feeding thickness: 0.3-1.0mm(Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Stainless steel coil); 0.3-1.5mm (Aluminum steel coil)

1050-825 corrugated galvanized roof roll forming machine main Parameters

Main motor power

5.5KW

Voltage

380V/50HZ/3 phase, or as requirement

Productivity

8-12m/min

Mainframe

350mm H beams, 45# steel

Middle plate

18mm

Wheel

45# steel, hardness HRC 58-60℃

Shaft

high quality 45# forged steel, with anti-return pad

Shearing knife

Cr12 / Cr12MOV, heat treatment, HRC 58-60℃

Decoiler

Manual decoiler for free

Cutting blade

Manual cutter

Cutting method

Hydraulic guide column cutting

Control System

PLC Control System, 360 degree rotation

PLC Display languages

Chinese, English, (Spanish or Russian)

Machine details

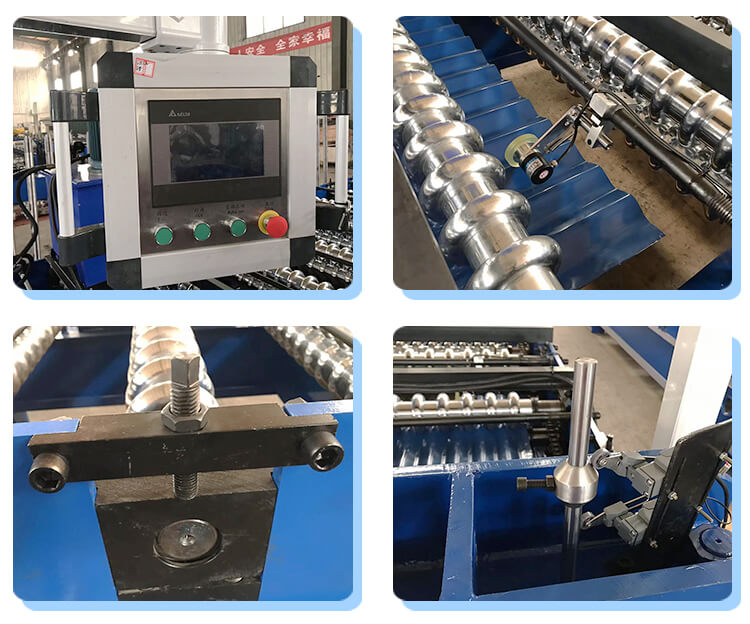

1050-825 corrugated roof machine details

Additional Information

Supply Ability:

200 Sets per Month

Packaging & Delivery:

a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.

b.Rollers and shafts are covered with anti-rust oil.

c.PLC control system and motor pump are packed with waterproof paper and plastic film.

d.Spare parts in a carton box.

e.Manual decoiler was nude packing.

f.The output-table put into a carton box.

g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.

h.Fit for ocean shipping.

Port:

Tianjin Port, Qing dao port, Shanghai port, Yiwu port

Lead Time :

Quantity(Sets)

1 - 3

4 - 5

6 - 10

>10

Est. Time(days)

25

30

40

To be negotiated
