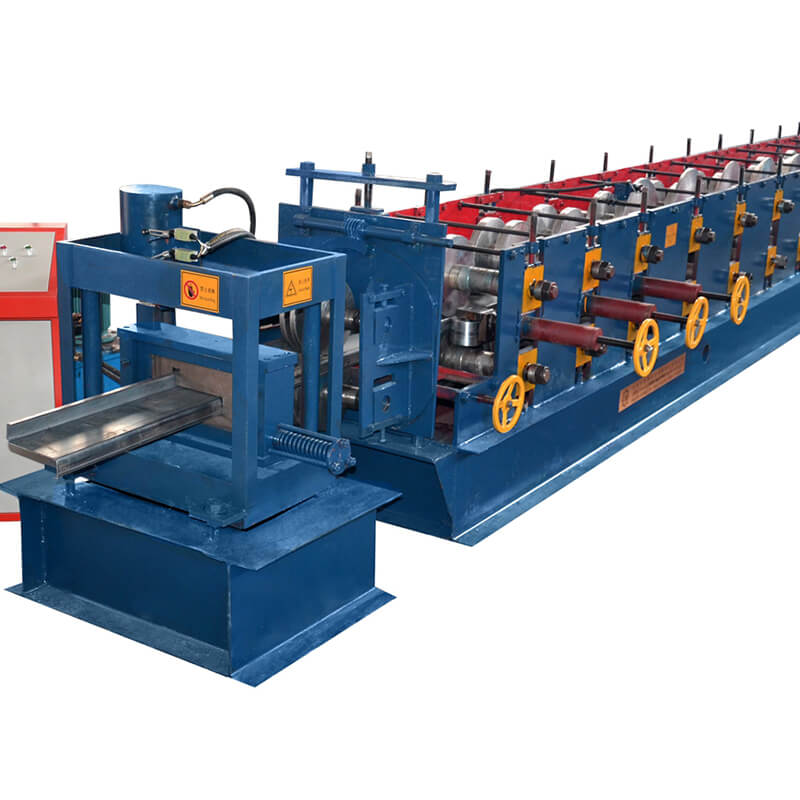

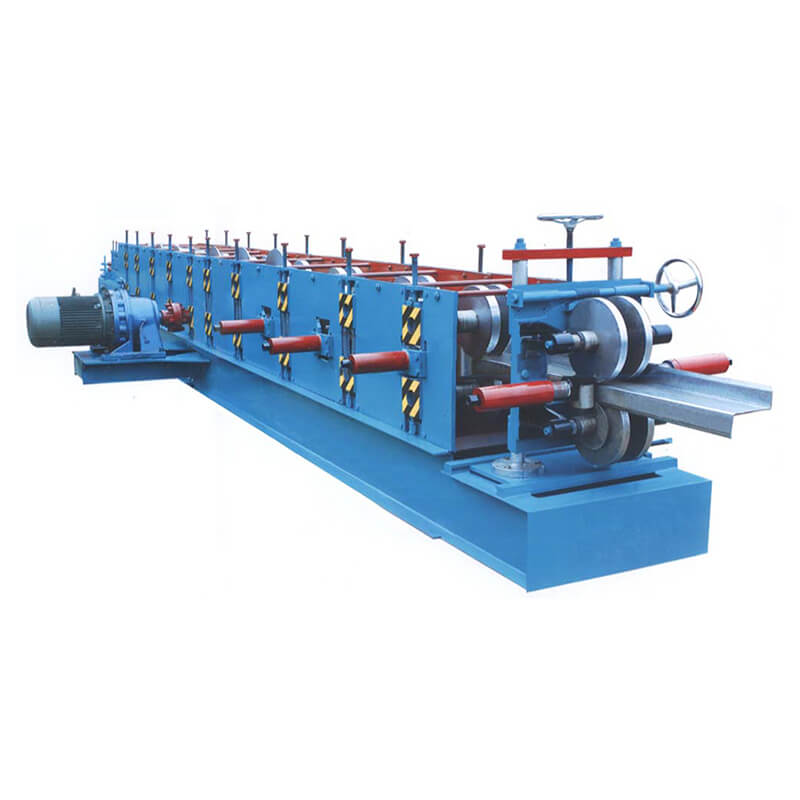

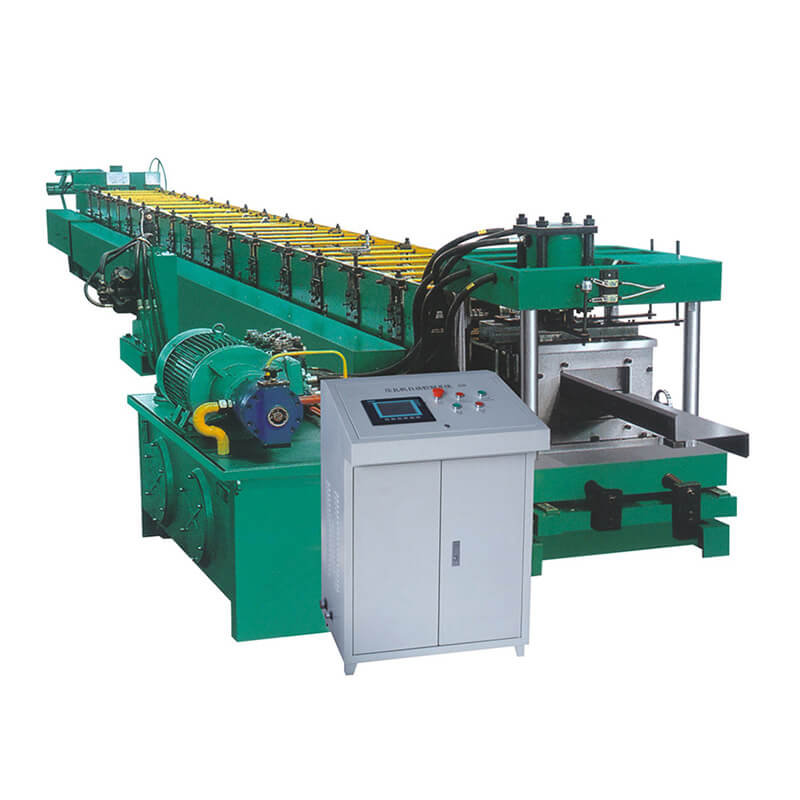

The Z type purlin roll forming machine can produce z-shaped steel with a thickness of 1.6-3.0mm and a cross-sectional height of 120-350mm.
Z type purlin roll forming machine parameters
|
Suitable to process |
Steel plate |
|
Rollers |
14 rows |
|
Dimensions |
11*1.3*1.5m |
|
Power |
11.5+7.5kw |
|
Thickness of the plate |
1-3mm |
|
Productivity |
8-10m/min |
|
Middle plate thickness |
20mm |
|
Driving ways |
2.6-inch China wheels and link chain |
|
Diameter and material of the forming axis |
80mm |
|
Weight |
About 8.5T |
|
Voltage |
380V 50HZ3 phase |
Packing and shipping of the machines:
1. For the packaging of the roll forming machine, it should be bare.
2. We will protect the machine before shipment to prevent rust and damage.
Usage:
Purlin and wall beam of steel structure building.
The Z-shaped purlins have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
