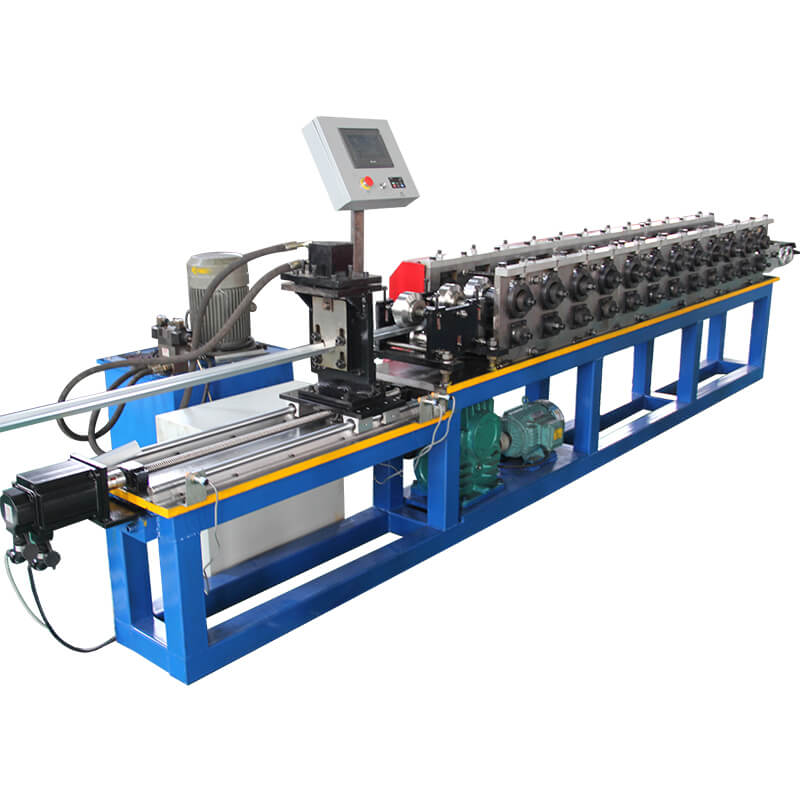

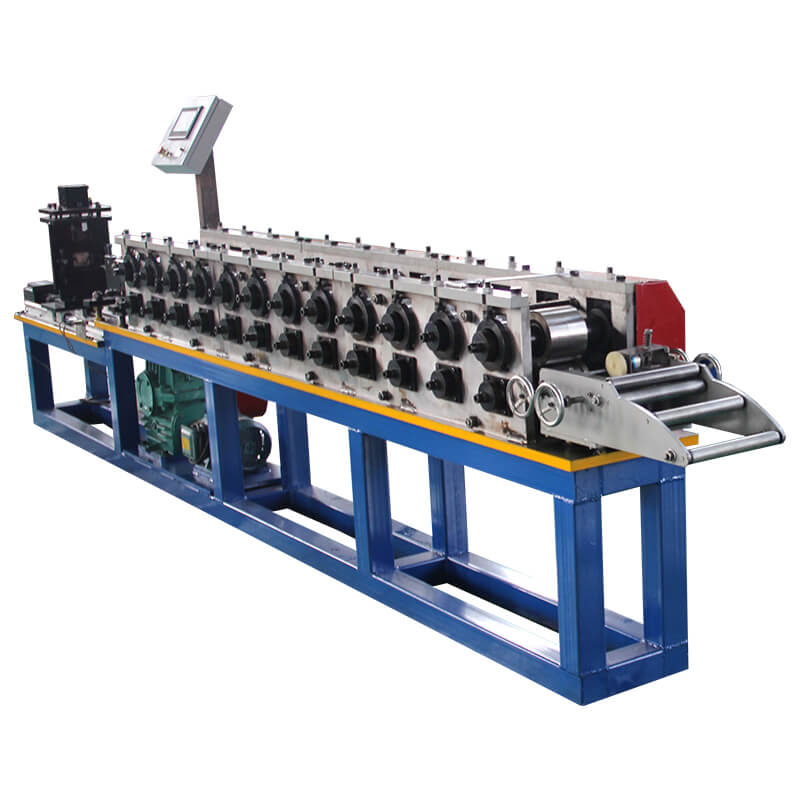

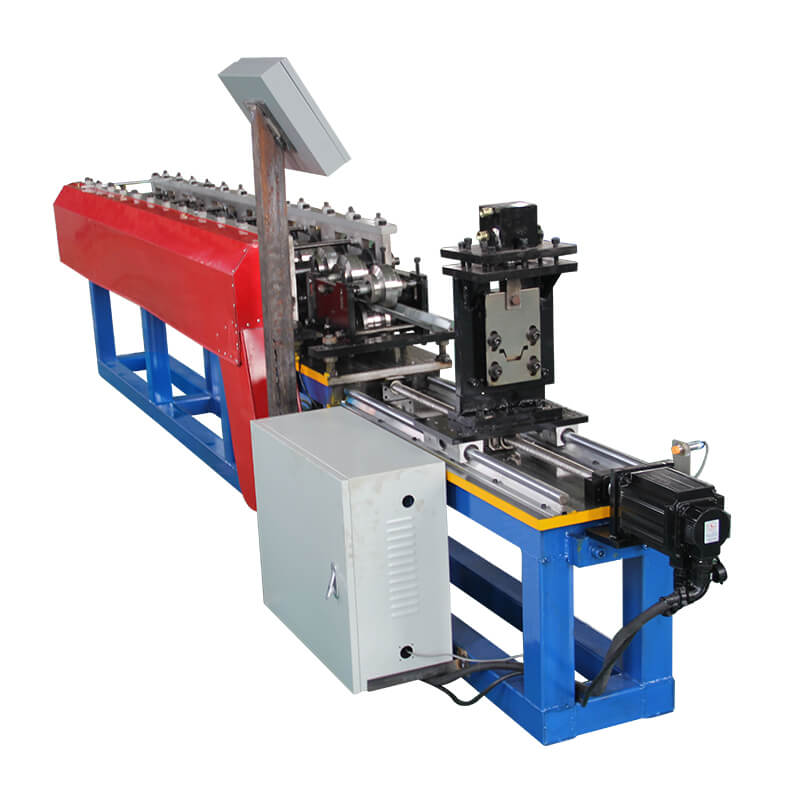

Omega profile steel keel roll forming machine
Our steel keel roll forming machine for different models based on different designs or customer's samples.
Port:
Tianjin Port, Qing dao port, Shanghai port, Yiwu port
Lead Time:
|
Quantity(Sets) |
1 - 3 |
4 - 5 |
6 - 10 |
>10 |
|
Est. Time(days) |
25 |
30 |
40 |
To be negotiated |
Omega profile steel keel roll forming machine main Parameters
|
1
|
Suitable to process
|
Color alu-zinc steel strips
|
|
2
|
Roller
|
12Rows plus leveling device
|
|
3
|
Dimensions
|
5.4*1*1.5m
|
|
4
|
Motor Power
|
3Kw
|
|
5
|
Pump Station Motor
|
3Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ50mm
|
|
10
|
Weight
|
About 2600kgs
|
|
11
|
Main structure of the machine
|
Square steel frame
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer's need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Gear driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|

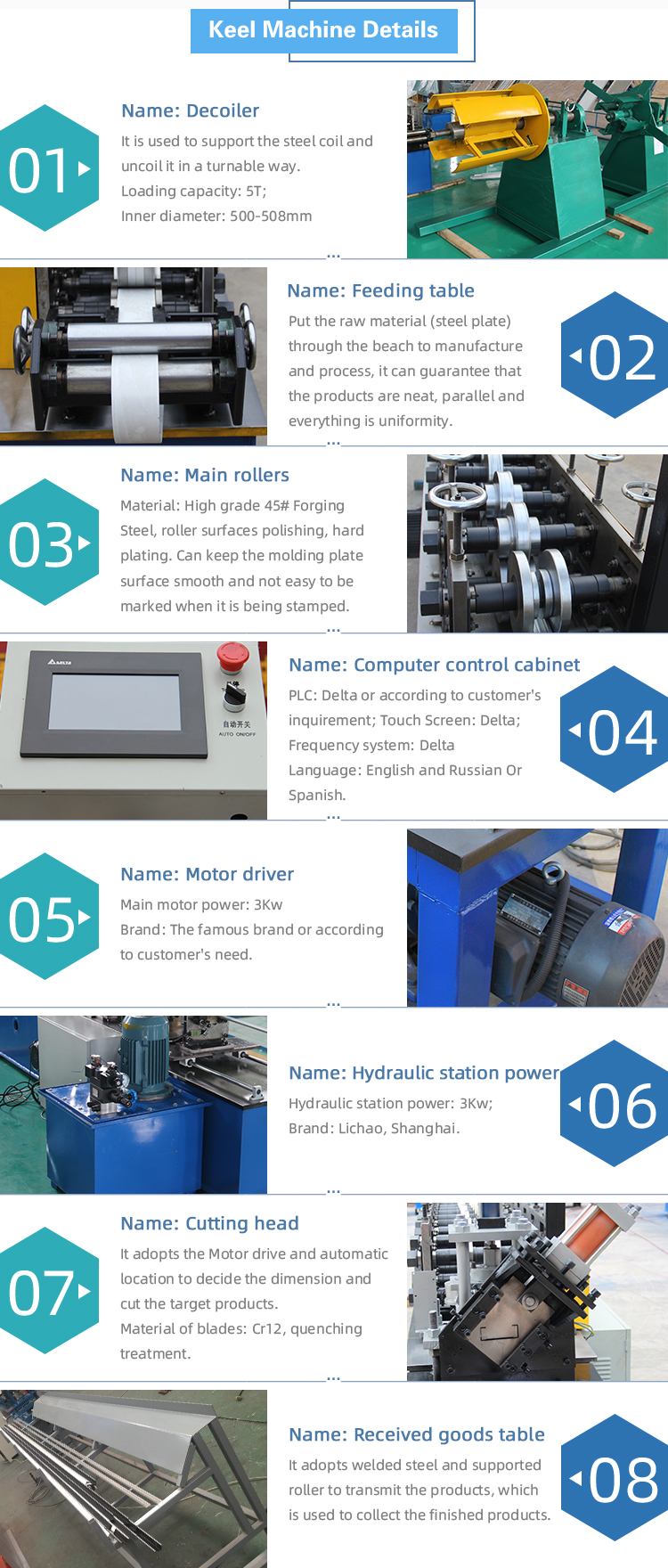

Omega profile steel keel roll forming machine details
Supply Ability
200 Sets per Month
Packaging & Delivery
a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
b.Rollers and shafts are covered with anti-rust oil.
c.PLC control system and motor pump are packed with waterproof paper and plastic film.
d.Spare parts in a carton box.
e.Manual decoiler was nude packing.
f.The output-table put into a carton box.
g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
h.Fit for ocean shipping.
