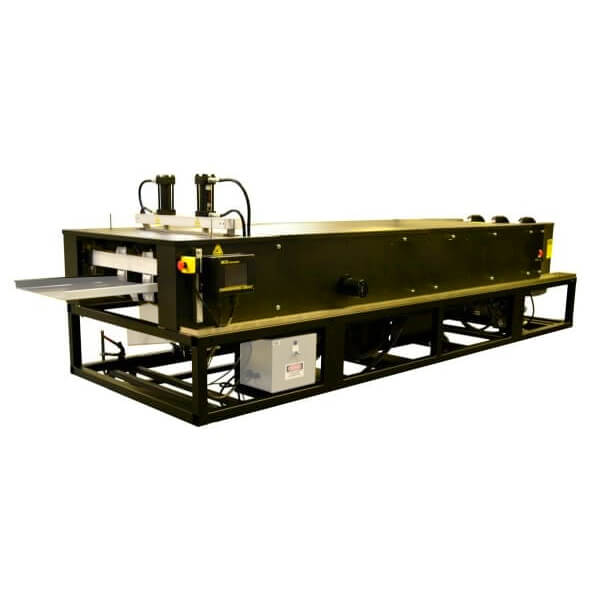

KR24 portable metal roofing machine parameters
| Material Width | 610mm |
| Effective Width | 457mm |
| Thickness of Coil | 0.4-0.8mm aluminum coil |
| Application | roofing system |
| Estimated Dimension | 4500mmX950mmX1800mm |
| Total Weight | 3 Tons |
| Main Power | 7.5 KW |
| Decoiler | Manual or Hydraulic Decoiler |
| Forming Speed | 0-15m/min |
| Forming Station | 9 rollers with hard chromium |
| Bracket | Welded with 36 # I-steel |
| Material of Shaft | High Grade forged 45# Steel with 1st Rough Finished and then 2th Refined Finished |
| Diameter of the Roll | 90mm |
| Material of Roller | High Quality Cr12Mov Steel Quenched HRC58-62 ° |
| Processing Technology | Rough Processing ---Refined Processing--Hard Chromium Plating. |
| Material of Rack | Complete Welded Structure of A3 Steel Plate 20 mm Thickness |
| Transmission | Chain or Gear Box or universal joint |
| Material of cutting blade | Cr12 with Quenched Treatment 60-62 ° |
| Cutting system | Hydraulic Stop or Tracking Cutting |
| Voltage | 380V/50HZ/3 Phase or as Customer Require |
Components
| Manual Uncoiler-------------------1 set |
| Guiding Platform------------------1 set |
| Coil Strip Leveler------------------1 set |
| Main Machine of Roll Forming------1 set |
| Electric-Motor---------------------1 set |
| Cutting Device--------------------1 set |
| Hydraulic Station------------------1 set |
| PLC Control-----------------------1 set |
| Supporter Table-------------------1 set |

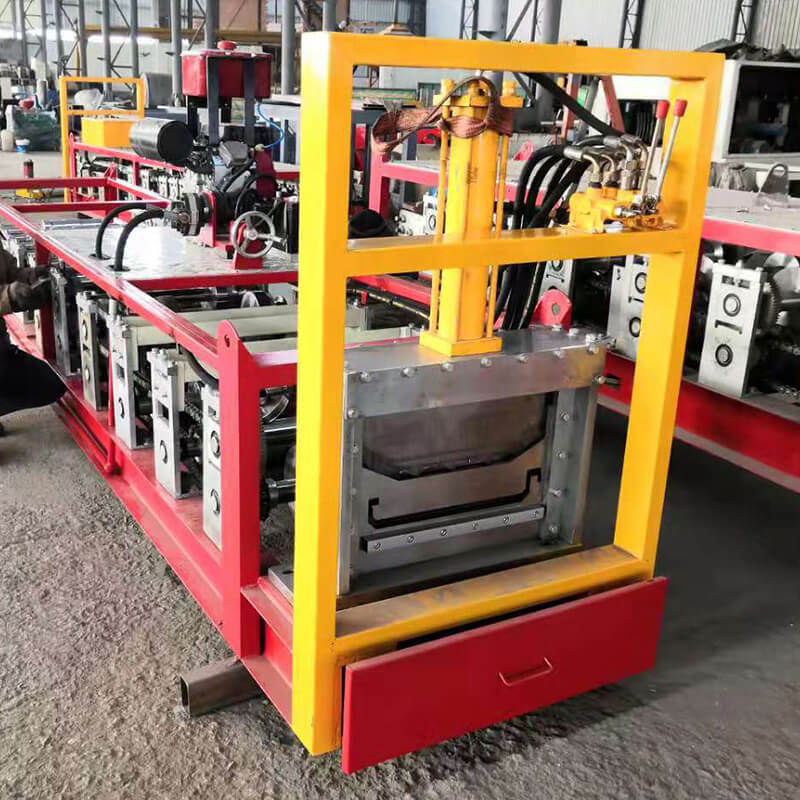

Portable metal roof roll forming machine picture details
Portable metal roof roll forming machine export standard packages details
1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
2.This producing line is maintained free of charge for 24 months.When the machine is used in China, we will install and debug the machine for free; if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

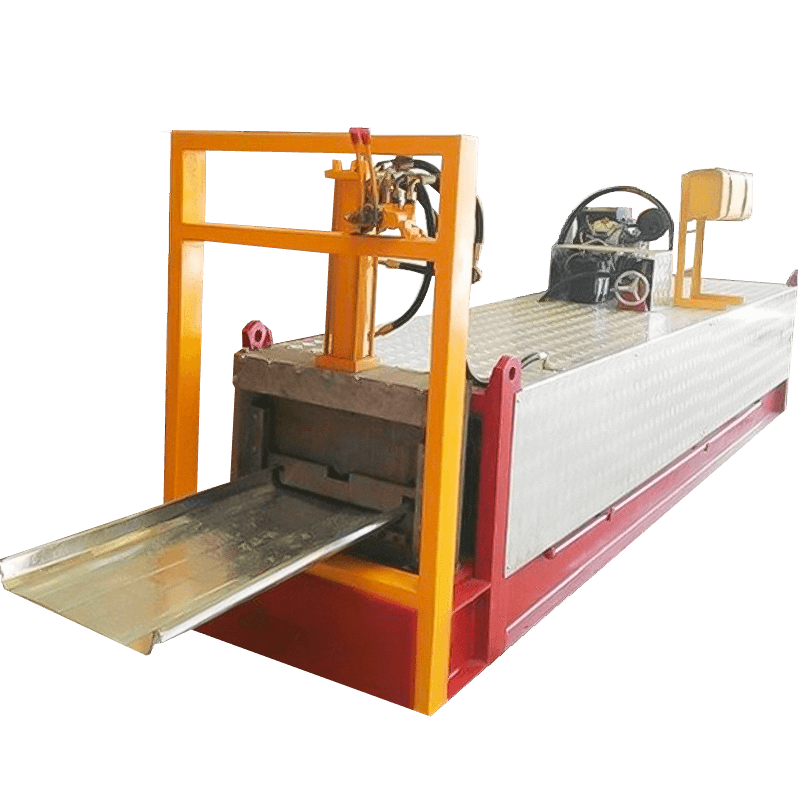

More profile produced by portable steel panel forming machine
