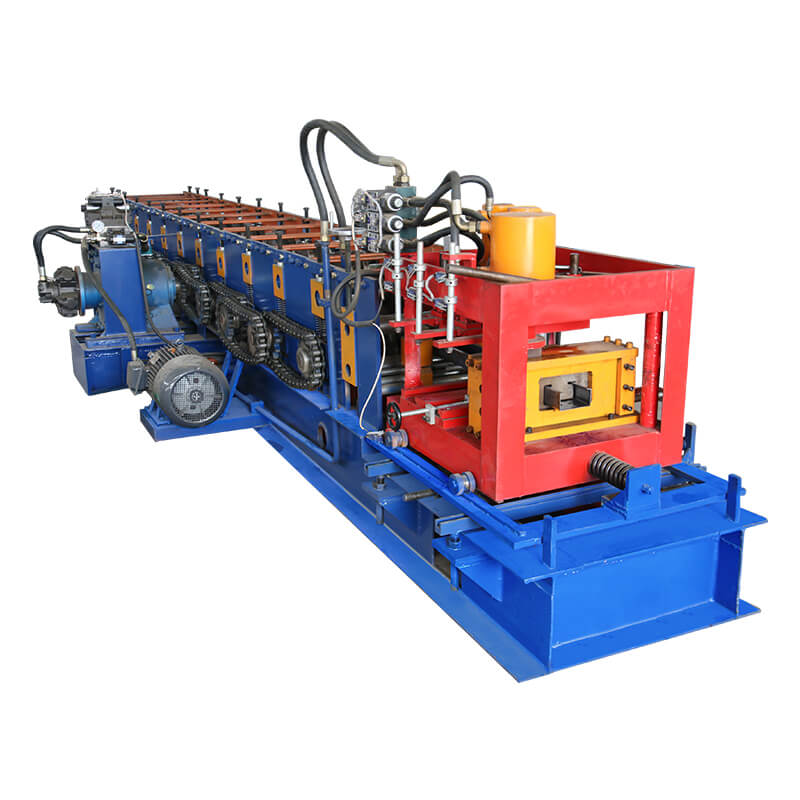

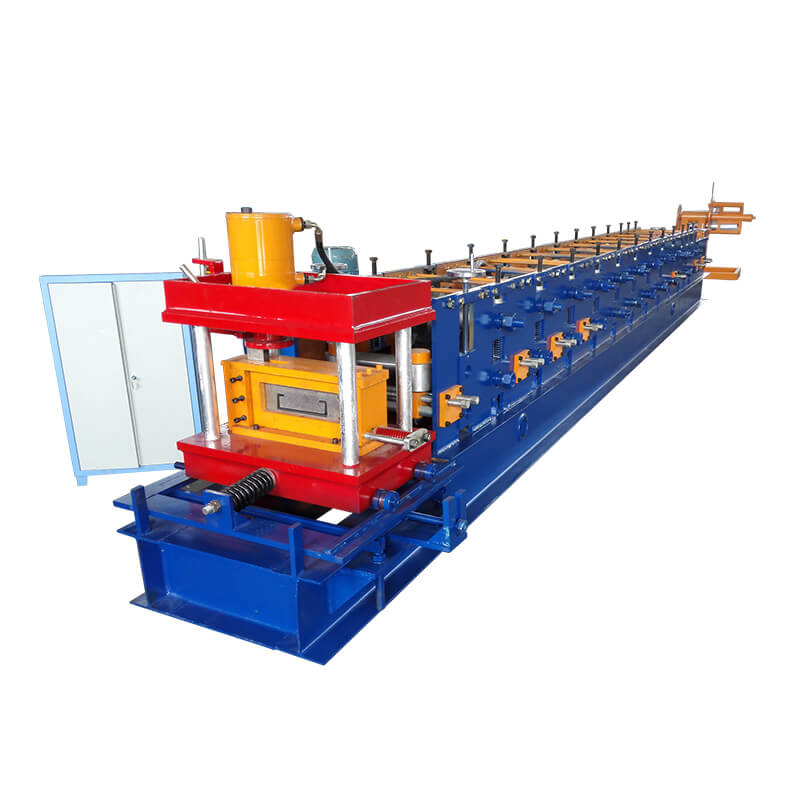

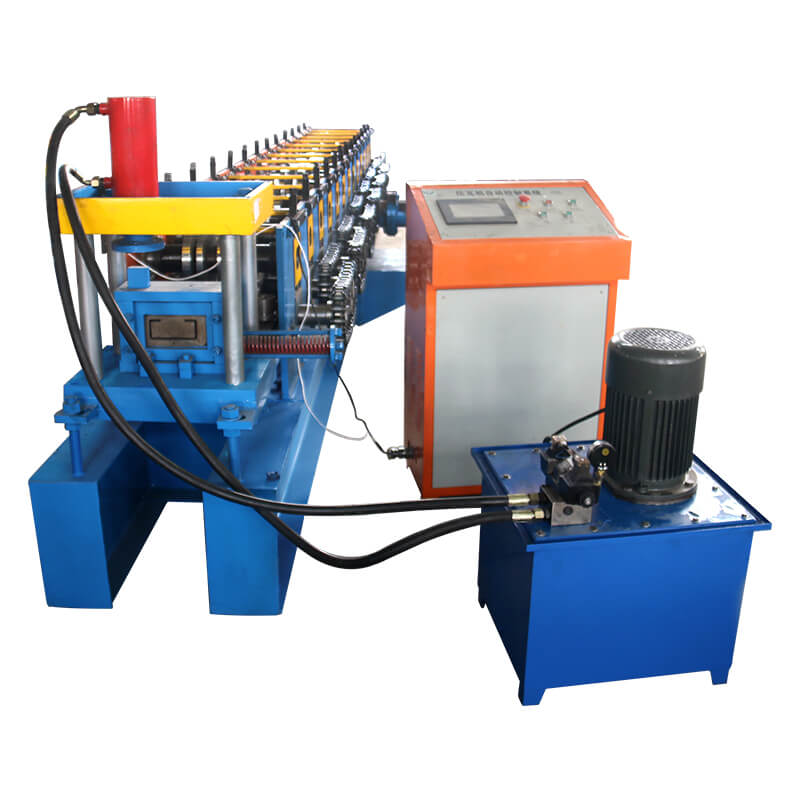

The strip is fed from the tail of the equipment and pressed through various press rolls to form a C-shaped steel to be sent out from the head.
|
C channel purlin roll forming machine parameters |
||
|
1 |
Suitable to process |
Steel plate |
|
2 |
Rollers |
18 rows (Before and after the leveling and contains no lead to send passes) |
|
3 |
Dimensions |
11*1.3*1.5m |
|
4 |
Power |
11.5kw+7.5kw |
|
5 |
Thickness of the plate |
1-3mm |
|
6 |
Productivity |
8-10m/min |
|
7 |
Middle plate thickness |
20mm |
|
8 |
Driving ways |
2.6-inch China wheels and link chain |
|
9 |
Diameter and material of the forming axis |
80mm |
|
10 |
Weight |
About 8.5T |
|
11 |
Voltage |
380V 50HZ3 phase |
|
12 |
Roll material |
GCr15(bearing steel) hard chrome plated after heat treatment |
|
13 |
Shaft material |
40Cr Modulation of heat treatment after polishing hard chromium plating |
|
14 |
On both sides of the wall material |
A3 steel |
|
15 |
Frame |
International H-beam |
|
16 |
Blade material |
Cr12Mov |
|
17 |
Forming wheel |
Bearing steel quenching |
Following parts:
Single-end feeding machine (max capacity 5T), Feeding leveling, Forming system, Straightening mechanism (one word original), At single + double holes, After forming shear system, Supporting material platform(6m)
Terms:
1. Delivery: within 60 days after receiving the deposit.
2. Package: export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
We have professional foreign trade and design team. All kinds of roll forming machine can be customized, so just send your panel profile and real enquiry.
