Automatic CZ interchange purlin machine
Automatic CZ interchange purlin machine Automatic CZ interchange purlin machine Automatic CZ interchange purlin machine

Automatic CZ interchange purlin machine

Product Tags :
Product Attributes :

Automatic CZ interchange purlin machine process flow:

Manual decoiler-- punching hole-- roll forming machine-- molding press-- PLC control box-- hydraulic system-- post cut-- output table.

Product Description

Automatic CZ interchange purlin machine process flow:

Manual decoiler-- punching hole-- roll forming machine-- molding press-- PLC control box-- hydraulic system-- post cut-- output table.

Purlin roll forming machine parameters

1 Suitable to process Steel plate
2 Rollers 18 rows(Before and after the leveling and contains no lead to send passes)
3 Dimensions 11*1.3*1.5m
4 Power 11.5kw+7.5kw
5 Thickness of the plate 1-3mm
6 Productivity 8-10m/min
7 Middle plate thickness 20mm
8 Driving ways 2.6-inch China wheels and link chain
9 Diameter and material of the forming axis 80mm
10 Weight About 8.5T
11 Voltage 380V 50HZ3 phase
12 Roll material GCr15(bearing steel)hard chrome plated after heat treatment
13 Shaft material 40Cr Modulation of heat treatment after polishing hard chromium plating
14 On both sides of the wall material A3 steel
15 Frame International H-beam
16 Blade material Cr12Mov
17 Forming wheel Bearing steel quenching

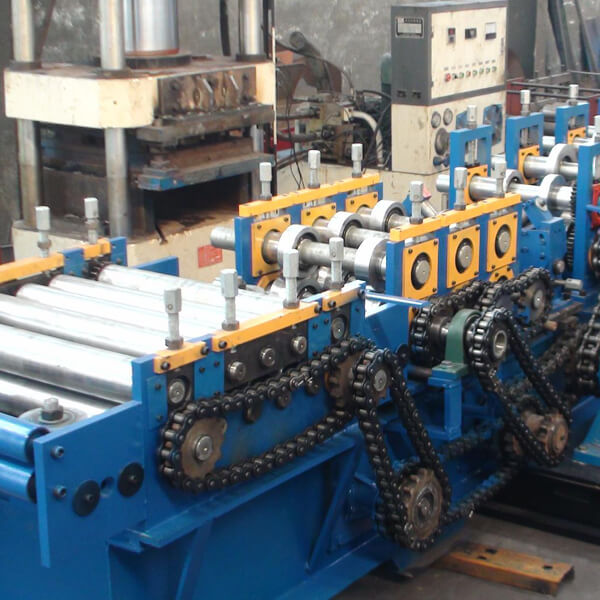

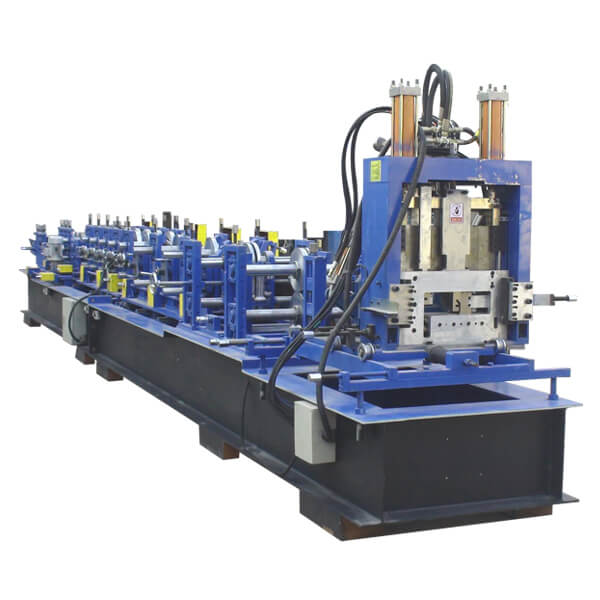

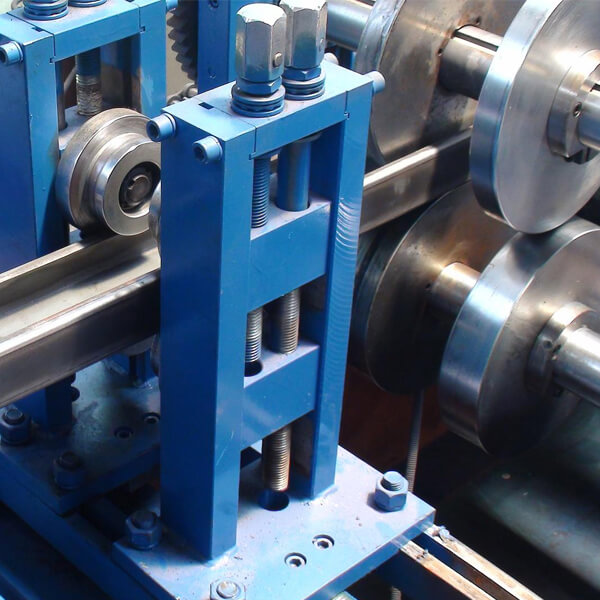

Machine picture display

Automatic CZ interchange purlin machine

Automatic CZ interchange purlin machine

Automatic CZ interchange purlin machine

Automatic CZ interchange purlin machine

Terms:

1. Delivery: within 60 days after receiving the deposit.

2. Package: export standard package for container.

3. Payment: TT(30% by TT in advance, 70% by TT after inspect the machine before delivery)

Advantages of our roll forming machines

1, Our machine can use galvanized steel, color steel plate or aluminum plate as material board.

2, Using computer control, PLC display. Therefore the machine is easy to operate, stable and reliable operation, durable, maintenance-free.

3. We can manufacture and design various roll forming machines according to customer requirements.
